Volcano Maungawhau

Published: Aug 20, 2009 by Tom Hengl

Maunga Whau (Mt Eden) is one of about 50 volcanos in the Auckland volcanic field. This data set gives topographic information for Maunga Whau on a 10 m by 10 m grid. A matrix with 87 rows and 61 columns, rows corresponding to grid lines running east to west and columns to grid lines running south to north.

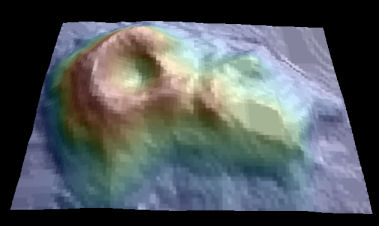

Perspective view - volcano

Available layers:

- volcano_maungawhau.asc — the 10 m DEM digitized from the topo map;

Grid definition:

ncols: 61
nrows: 87
xllcorner: 2667400
yllcorner: 6478700
cellsize: 10 m

proj4:+init=epsg:27200

Lineage:

Digitized from a topographic map by Ross Ihaka. These data should not be regarded as accurate.

\> data(volcano)
>library(spatstat)
>LLC <- data.frame(E=174.761345, N=-36.879784)
>coordinates(LLC) <- ~E+N
>proj4string(LLC) <- CRS("+proj=longlat +datum=WGS84")
>LLC.NZGD49 <- spTransform(LLC, CRS("+init=epsg:27200"))
>volcano.r <- as.im(list(x=seq(from=2667405, length.out=61, by=10),
+     y=seq(from=6478705, length.out=87, by=10),
+     z=t(volcano)\[61:1,\]))
>volcano.sp <- as(volcano.r, "SpatialGridDataFrame")
>proj4string(volcano.sp) <- CRS("+init=epsg:27200")
# str(volcano.sp)
# spplot(volcano.sp, at=seq(min(volcano.sp$v), max(volcano.sp$v),5),
+    col.regions=topo.colors(45))
>write.asciigrid(volcano.sp, "volcano\_maungawhau.asc", na.value=-1)

Data owner: LINZ
Location:Volcano Maungawhau, Auckland, New Zealand
36° 50’ 50.586” S,174° 45’ 56.646” E
See map: Google Maps

Attachment:
volcano_maungawhau.zip

dataset script
